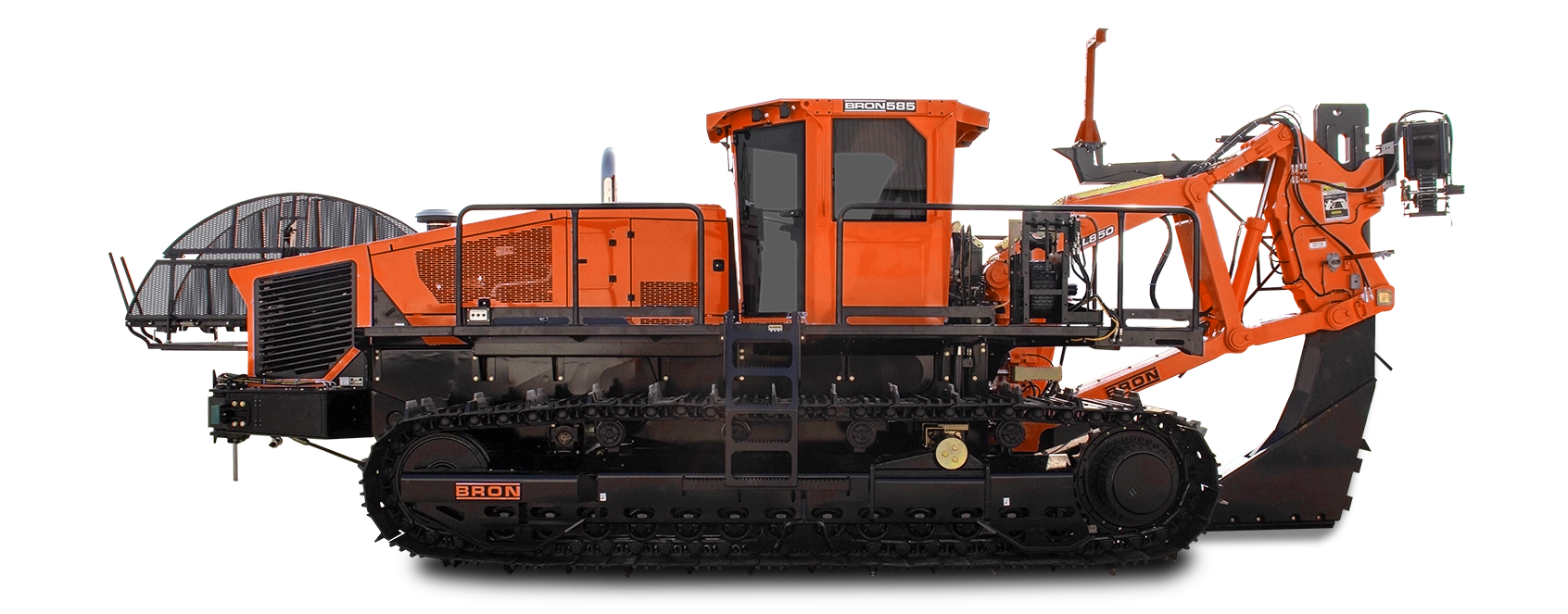

BRON 585 Self-Propelled Drainage Plow
BRON’s flagship drainage plow for professional tiling contractors. The 585 builds on the proven BRON 550 with more productivity, a heavier D7 undercarriage, and a cab designed for long days in the field.
- Starting weight
- 78,000 lbs
- Max depth
- 90 in.
- Net power
- 536 hp
- Undercarriage
- D7
- Ground pressure
- 5.4 psi
Explore the 585
Hover over or tap a numbered dot to see what makes each part of the machine stand out.
Photo: BRON
Standard features
Powertrain
- John Deere JD14 or Cat C13B engine, Tier 4 Final
- Engine maker-validated installation
- Planetary drives, up to 3.5 mph
- 5-core cooling rated for 50°C ambient
- Self-cleaning reversing fan
- Separate engine, hydraulic, and cooling compartments
- Onboard filtered hydraulic oil fill pump
Undercarriage
- D7 S.A.L.T. undercarriage
- Oscillating tracks
- Long track frame, up to 16 ft of ground contact
- Telescoping track axles
- Track guides to prevent de-tracking
- Elastomeric track tensioner
- Oversized bearings and seals
Cab
- ROPS-certified, 360-degree visibility
- Spacious interior with room for GPS displays
- Heated air-ride swivel seat with joystick steering
- A/C and heat
- Bluetooth stereo
- Sliding rear window
- Level Master 2 blade slope indicator
Platform
- Self-levelling with manual override
- Balanced weight distribution
- Full-length catwalks
- Full-width LED work light bar
- LED service lights
Plow
- DL850 Double Link plow, standard
- BC750 Cantilever Beam, optional
- RC750 Parallel Beam, optional
- High-wear AR steel shank
- Replaceable point, mouldboard, and bottom guards
Specifications
| Engine | |
|---|---|
| Engine | John Deere JD14 or Cat C13B |
| Emissions | Tier 4 Final |
| Net power | 536 hp (400 kW), peak 557 hp (415 kW) |
| Fuel tank | 233 U.S. gal (882 L) |
| Hydraulic tank | 56 U.S. gal (212 L) |
| Dimensions | |
| Weight | 78,000 lbs (35,380 kg) |
| Overall width (footprint) | 132 in. (3,353 mm) |
| Overall height | 135 in. (3,429 mm) |
| Length with attachment | 406 in. (10,312 mm) |
| Ground pressure | 5.4 psi (37.2 kPa) |
| Ground clearance | 24 in. (610 mm) |
| Plow | |
| Compatible plows | DL850, BC750, RC750 |
| Maximum cutting depth | 90 in. (2,286 mm) |
| Drive | |
| Undercarriage | D7 |
| Travel speed | 3.5 mph (5.6 kph) |
| Track drive | Hydrostatic 2-speed automatic, variable speed |
| Rollers | 13 |
| Shoe width | 34 in. (864 mm) |
| Operator | |
| Cab | Fully enclosed with HVAC, ROPS certified |
| Steering | Joystick |
Specifications from BRON and subject to change. Contact us to confirm configuration and pricing.
